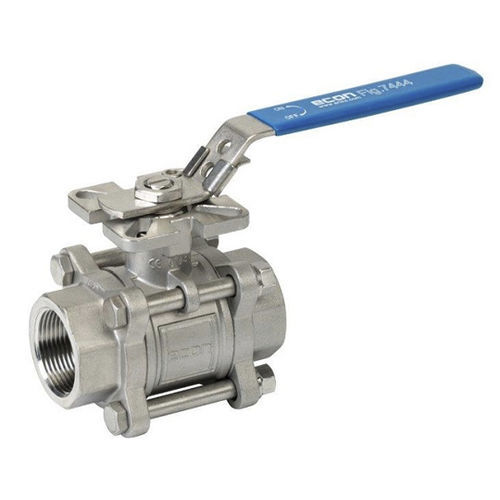

Ball valve 1WE40 seriesleverfor controlthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Body
- threaded, stainless steel, PTFE
- Other characteristics
- ISO, anti-static, socket weld
- DN
Min.: 6.35 mm
(0.25 in)Max.: 50.8 mm
(2 in)
Description
The Econ® E40 Series is an economy three piece, full port ball valve with NPT ends. The E40 is rated to 1000 WOG and is available in sizes ranging from ¼” to 2”. Valve bodies are made of CF8M with 316SS trim and PTFE seats. This valve is also available in Socket Weld.
CF8M Body/316SS Trim
Built-in ISO 5211 Mounting Pad for Easy Automation
Anti-Static Devices for Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
TA-LUFT Design/Approved Live Loaded Stem Packing
Standards
Connection: NPT
Pressure rating 1000 PSI WOG
Catalogs
1WE40
7 Pages
