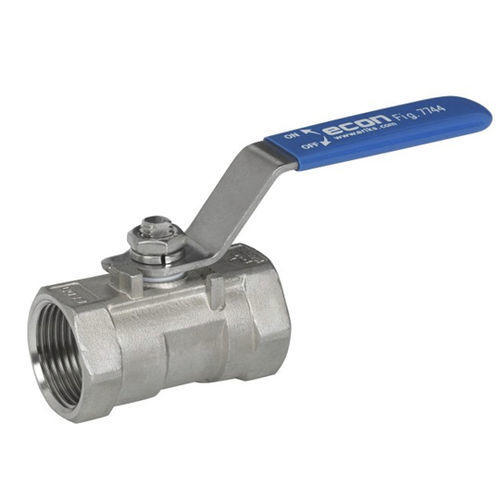

Ball valve 1WE55 seriesleverfor controlthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Body
- threaded, double, stainless steel, carbon steel, PTFE
- Applications
- pipe
- Other characteristics
- locking
- DN
Min.: 6.35 mm
(0.25 in)Max.: 50.8 mm
(2 in)
Description
The Econ® E55 Series is a one piece, double reduced port ball valve with NPT ends. The E55 is rated to 1000 WOG and is available in sizes ranging from ¼” to 2”. Valve bodies are made of 316SS with 316SS trim and PTFE seats.
Carbon Steel and 316SS Bodies/316SS Trim
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
Locking Device is Available Upon Request
Standards
Design: ASME B16.34, MSS SP-110
Pipe Thread: ASME B1.20.1
Inspection and Testing: MSS SP-110
Catalogs
No catalogs are available for this product.
See all of Econ Brand Valves‘s catalogs
