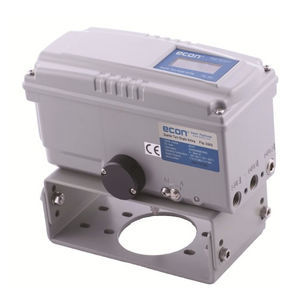

IP67 limit switch Fig 79651

mechanicalindustrial

The Econ Fig. 79651 limit switch has an IP67 aluminum body and can be equipped with mechanical switches or proximity sensors. They are designed for pneumatic actuators but can also be mounted on manual ECON ball valves. A standard NAMUR mounting bracket (30x80x30) is included, but other options are available. Enclosure rating: Weather-proof Enclosure: IP67 Ambient temperature range: -4°F up to +175°F (-20°C up to +80°C) Conduit entries: NPT 1/2″ Travel angle: 90° +/-10% Visual position indicator: Open: Yellow; Close: Red Switch types: See Product Sheet Terminal strip 8 point External coating: Dry powder polyester A Switch box is used to monitor the open and closed position of automated valves. The ECON Fig. 79651 limit switch box is designed to provide accurate and reliable valve position information of actuated valves and also hand operated valves. The Fig. 79651 limit switch box consists of an aluminium body a poly carbonate visual position indicator, quick-set cam assemblies, terminal strip, switch assemblies and an easy mounting bracket. Quick-set cams enables rapid manual switch adjustments. Tools are not required. A standard mounting bracket (30x80x30) is included. ECON switch boxes are suitable for single and double acting pneumatic actuators which have NAMUR connections.
