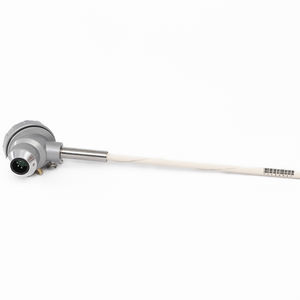

Oxygen probe CarboProbe HT

for high-temperature applicationszirconia

DESCRIPTION Based on the ZrO2 C3M Electrolyte, the CarboProbe HT probe can handle temperatures up to 1700°C. All parts exposed to high temperatures are ceramic or platinum. This probe has a robust construction with a 15 mm diameter ceramic tube that protects the internal measurement device. This probe measures the oxygen concentration. This probe cannot be used for the measurement of oxygen in carburising mixtures. MAINTENANCE There are no maintenance parts required inside the sensor, if the platinum external connector is damaged it can be repaired without loss of signal quality. TECHNICAL CHARACTERISTICS Output 0 to 1200 mv Readout impedance This probe should be used with controlling, recording and indicating instruments having input impedance of 8 megohms or higher Accuracy +- 2 mV in normal operating range Response time Less than 1 second Thermocouple R, S Operating temperature From 600°C (1100°F) to 1700°C (3100°F) Mechanical shock Resists mild mechanical shock. Handle carefully Available lengths 300mm (11.8”), 400mm (15.7”), 500mm (19.7”), 600mm (23.6”), 700mm (27.5”), 800mm (31.5”), 900mm (35.4”), 1000mm (39.4), 1100mm (43.3”) Reference air Uncontaminated dry air at maximum rate of 1-6 l/h External diameter 15 mm Industry-grade probe for tempera-ture up to 1700°C (3100°F)The CarboProbeHTis suitable for use at temperatures between 600°C to 1700°C (1100°F to 3100°F).It is most often used to control % of ox-ygen within a treatment cycle, typically in the range from 0.5% to 5% (but can work up to 100%). High quality probe... > All components exposed to high-temperature gases are ceramic or platinum for optimum cor-rosion resistance
