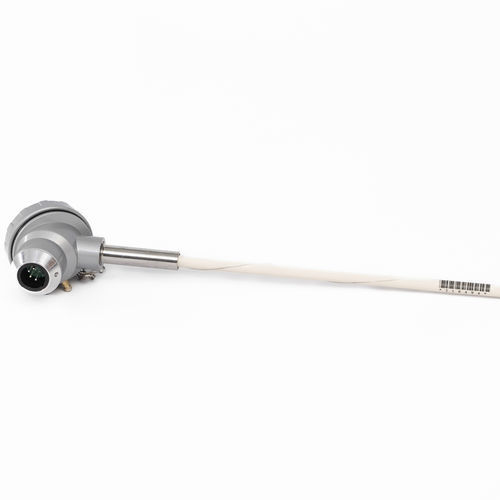

Oxygen probe CarboProbe CP

thermocouple

The CarboProbe CP is a very simple, low cost oxygen probe with an easy-to-read digital meter displaying oxidation/reduction. It is especially designed for potters. NOT FOR INDUSTRIAL USE Applications The advantages of measurement of oxidation/reduction include: •Fuel savings – An economical firing depends on supplying enough oxygen, without waste of energy from heating excess air. •Reliable glaze colours – Knowing the right level of reduction every firing gives you the colours you want, firing after firing. •Reduced air pollution – Use the CP Probe as a guide for stoking wood-fired kilns to reduce wood consumption and unnecessary ash and smoke. This probe is based on the ZRO2 zirconia oxygen sensor. TECHNICAL CHARACTERISTICS Accuracy +- 2 mV Response time Less than 1 second Operating temperature From 600°C (1100°F) to 1700°C (3100°F) Available lengths 200mm (7.9”), 300mm (11.8”) – Other lenghts on request External diameter 8.5 mm As a potter, you need... > The right temperature > The right oxidation / reduction > The least possible fuel consumption
