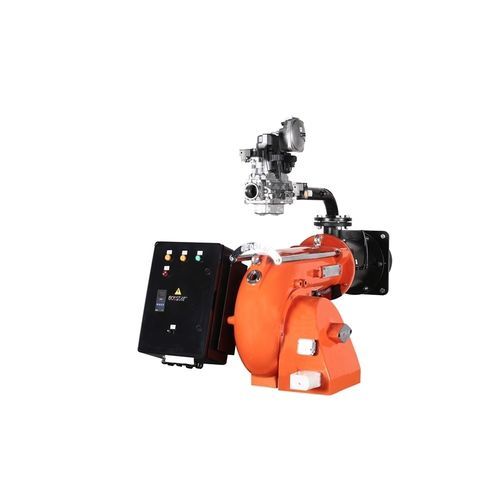

Monobloc burner ECO 45 K L C 3b
pilotlight fuel oilgas

Monobloc burner - ECO 45 K L C 3b - Ecostar Burners - pilot / light fuel oil / gas
Monobloc burner - ECO 45 K L C 3b - Ecostar Burners - pilot / light fuel oil / gas
Add to favorites
Compare this product


Characteristics

Type
monobloc, pilot
Power source
light fuel oil, gas, natural gas
Firing
direct fired
Applications
flange
Power

Min.: 200 kW

Max.: 5,610 kW

Description

Modulating operation with natural gas and light oil, Mechanical, pneumatic and electronic modulating control options, Operating at 21 mbar gas pressure up to model ECO 55 K (L) C 3, Wide thermal capacity adjustment range according to the heat requirement, Direct ignition and optional pilot ignition, Flame control with ignition and photocell, Uniform fuel mixture with a unique combustion head with high combustion efficiency, Combustion air control with air pressurestat, Operation at low noise levels with its aluminum alloy, light body, Minimum friction losses on body and combustion nozzle, Combustion air flow adjustment with internal fan flap, Easy access to all parts without dismounting the burner from the boiler, High pressure mechanical atomization at nozzle, Specially-designed, compact pre-heater, safety, operation and limiting thermostat Sliding flange for connection to different boiler types, Compact design requiring minimal maintenance.
