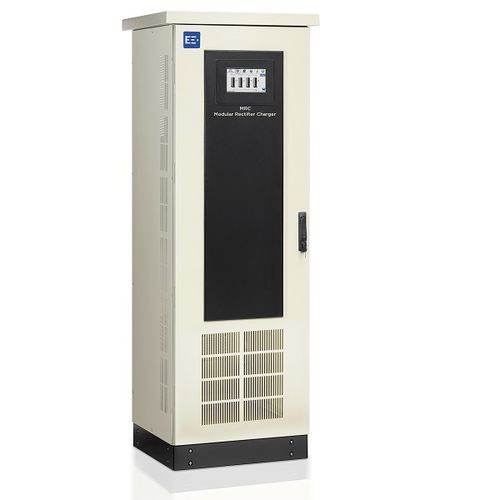

Thyristor rectifier battery charger MRC series

floor-standingcabinetNi-Cd

The MRC rectifier is designed for applications that require high power adjustable DC voltage. Many MRC rectifiers are connected in parallel to provide a very high power rectifier-charger solution. Output voltage and output current are adjustable between zero and nominal value. It is suitable for using in projects that require High Power and High Current, in universal battery charging and DC supply applications that require adjustable output voltage and output current, in projects that need parallel connection and redun-dancy, and for industrial DC motor supply. ●Rectifier and Battery Charger that can be connected in parallel ●Multi-master Parallel Connection Technology ●Adjustable Output Voltage between 0V-1000VDC ●Parallel connection up to 16 units ●High power solution up to 10 MVA ●Equal Load Sharing ●Input Isolation Transformer ●Durable structure with thyristor technology ●Production at all industrial input voltages ●DC Earth Leakage protection ●Low Voltage / High Voltage protection ●Overload protection ●Over temperature protection ●Efficiency >% 95 ●7” Touchscreen Operator Panel ●Suitable design for industrial environment What is MRC Modular Rectifier and Battery Charger? The MRC rectifier is designed for applications that require high power adjustable DC voltage. Many MRC rectifiers are connected in parallel to provide a very high power rectifier-charger solution. Output voltage and output current are adjustable between zero and nominal value.
