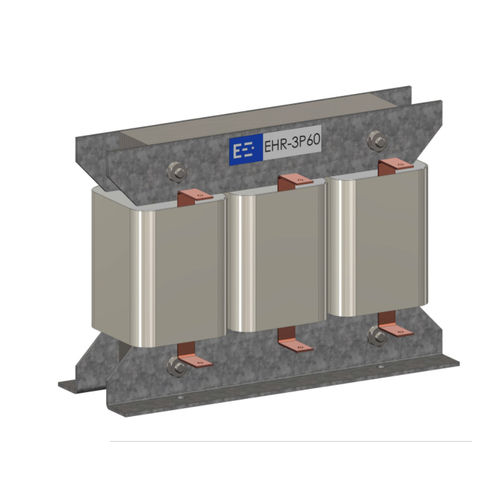

Single-phase harmonic filter reactor EHR-M
three-phase

Single-phase harmonic filter reactor - EHR-M - Edit Elektronik - three-phase
Single-phase harmonic filter reactor - EHR-M - Edit Elektronik - three-phase
Add to favorites
Compare this product


Characteristics

Other characteristics
three-phase, single-phase

Description

It is used between motor drives and frequency inverters and motor. It filters high-frequency signals originating from motor drives and reduces inrush currents. It protects drives and inverters in short circuits in motor windings. It is designed and produced in accordance with the technical specifications and filtering needs of motors and motor drivers. ●Motor Reactors ●Copper and Aluminum winding ●High efficiency sheet core ●Varnishing under vacuum ●Oven drying at high temperature Are produced in 4 different groups as single Phase and three Phases, according to the purpose of use and design features. Copper and aluminum windings of EHR Reactors are wound on high quality sheet cores. They are vacuum-impregnated varnished and high-temperature dried to ensure quiet and moisture-proof operation. It is long-lasting and safe. They are filter reactors used to reduce the current harmonics (THDI) in the network installation to the values required by the standards. It is used in Reactive Power Compensation systems to limit the overcurrents that occur during the switching of the capacitor groups and to protect the capacitors. In passive harmonic filter applications, it protects the connected loads against harmonic distortions and increases the immunity of the facility against electrical interference. It increases efficiency by reducing losses in power lines and power transformers. Line Reactors It reduces low-frequency harmonics and the distortions caused by it in the electrical installation. By limiting the starting currents of electrical machines and devices, it protects them and increases their lifetime.
