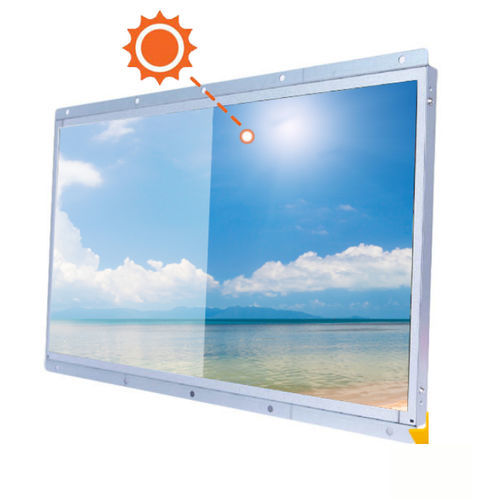

LCD monitor VT-1700LOprojected capacitive touchscreenresistive touch screeninfrared touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, projected capacitive touchscreen, resistive touch screen, infrared touchscreen, LED backlight
- Display size
- 17"
- Resolution
- 1280 x 1024
- Mounting
- panel-mount, chassis-mounted
- Applications
- industrial, for digital signage, outdoor, marine, for military applications, for aerospace applications
- Other characteristics
- HDMI, high-brightness, DVI port, DisplayPort
Description
Average 30% increased in brightness
Brightness can be changed depending on the envrionment condition.
RoHS Compliance, CE (Various Model) Certified.
Accessary : RGB, DVI Cable, Apdater, Power code
Specification
Panel spec
LCD PANEL - M170ETN01.1
Active area(mm) - 337.920 x 270.336
Pixel pitch(mm) - 0.264 x 0.264
Contrast ratio - 1000 : 1
Brightness - 520
Viewing angle - 85 / 85 / 80 / 80
Operation temp - 0~50
Storage Temp - 0~50
Standard type
Input signal - RGB, DVI
Input Power - DC 24V
Touch - -
Option
Input Power - AC 110~220V
Etc - Glass
