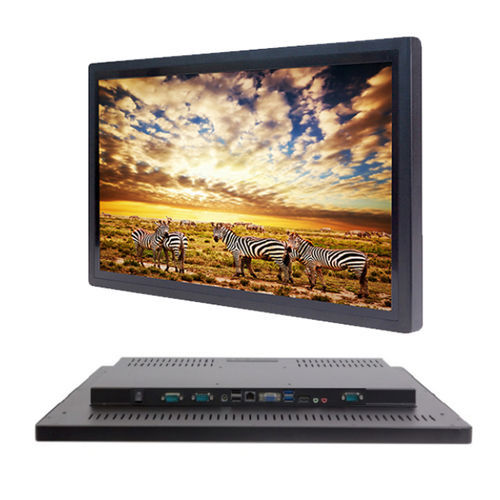

LCD panel PC VP-1500LC_LQ1SLED backlightPCAP capacitive touch screenresistive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, LED backlight, PCAP capacitive touch screen, resistive touch screen
- Display size
- 15"
- Resolution
- 1024 x 768
- Processor
- Intel® Celeron Bay Trail-M N2930, quad-core
- Memory
- DDR3L SO-DIMM
- Operating system
- Windows 7
- Construction
- slim design
- Mounting
- chassis-mounted
- Applications
- industrial, for medical applications
- Memory size
4 GB, 8 GB
Description
Enhanced slim design panel PC
Multi-touch available
RoHS Compliance, CE (Various Model) Certified.
Accessary : Power code
Specification
Panel spec
LCD PANEL - HM150X01-101
Active area(mm) - 304.128 x x228.096
Pixel pitch(mm) - 0.297 x 0.297
Contrast ratio - 700 : 1
Brightness - 300
Viewing angle - 80 / 80 / 70 / 60
Operation temp - 0~60
Storage Temp - 0~60
Standard type
Input Power - DC 12V
Touch - -
Option
Input signal - -
Input Power - AC 110~220V
Etc - Glass
