LCD monitor VH-1502LO_10resistive touch screeninfrared touchscreenPCAP capacitive touch screen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, PCAP capacitive touch screen, resistive touch screen, infrared touchscreen
- Display size
- 15"
- Resolution
- 1024 x 768
- Mounting
- panel-mount, open-frame, chassis-mounted
- Applications
- industrial, for digital signage, outdoor, marine, for displays, for military applications, for aerospace applications
- Other characteristics
- HDMI, high-brightness, DVI port, DisplayPort
Description

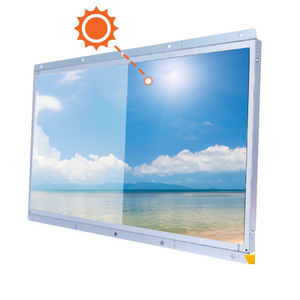

Show clear,vivid image in direct, bright sunlight condition.
RoHS Compliance, CE (Various Model) Certified.
Accessory : RGB, DVI Cable, Adapter, Power code
Specification
Panel spec
Active area (mm) - 304.128(H) X 228.096(V)
Pixel Pitch (mm) - 0.297(H) X 0.297(V)
Response Time - 35ms (Typ)
Contrast ratio - 1500 : 1
Brightness(Min.) - 950cd/m
Brightness(Typ.) - 1000cd/m
Viewing angle - 89 / 89 / 89 / 89
Operating Temp - -10'C ~ 70'C
Storage Temp - -30'C ~ 70'C
-
Standard type
Input Power - DC 12V
Frame - Open
Touch - -
Option
Input Power - DC 24V, AC110~220V
Dimming - Auto, Knob, Manual
Temp. Control - Heating , Cooling
