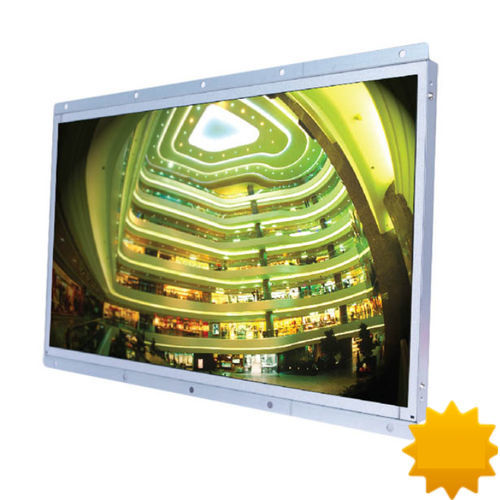

LCD monitor VL-W2380LOPCAP capacitive touch screen23.8"1920 x 1080
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, PCAP capacitive touch screen
- Display size
- 23.8"
- Resolution
- 1920 x 1080
- Mounting
- open-frame
- Applications
- industrial, for digital signage, for displays
- Other characteristics
- HDMI, DVI port, DisplayPort
Description
Flexibility configured for many different solutions.
RoHS Compliance, CE (Various Model) Certified.
Accessary : RGB, DVI Cable, Adapter, Power code
Specification
Panel spec
Active area (mm) - 527.04(H) X 296.46(V)
Pixel Pitch (mm) - 0.2745(H) X 0.2745(V)
Response Time - 12ms (Typ)
Contrast ratio - 3000 : 1 (Typ)
Brightness(Min.) - -
Brightness(Typ.) - 250cd/m²
Viewing angle - 89 / 89 / 89 / 89
Operating Temp - 0~50'C
Storage Temp - 0~50'C
-
Standard type
Input Power - DC 12V
Touch - -
Option
Input Power - DC 24V, AC110~220V
Frame - -
Dimming - Auto, Knob, Manual
Temp. Control - Heating , Cooling
