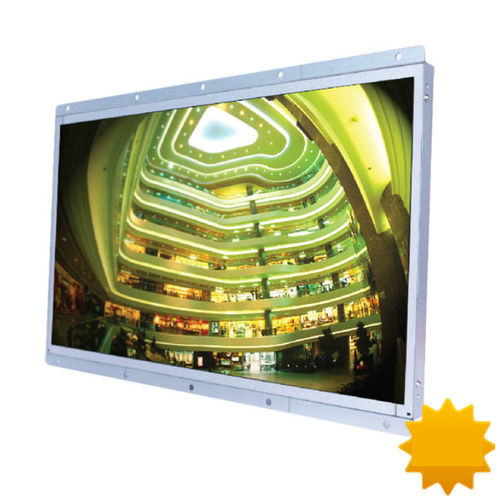

LCD monitor VL-W2413LOresistive touch screeninfrared touchscreenPCAP capacitive touch screen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, PCAP capacitive touch screen, resistive touch screen, infrared touchscreen
- Display size
- 24"
- Resolution
- 1920 x 1080
- Mounting
- open-frame
- Applications
- industrial, for digital signage, for displays
- Other characteristics
- HDMI, DVI port, DisplayPort
Description
Flexibility configured for many different solutions.
RoHS Compliance, CE (Various Model) Certified.
Accessory : RGB, DVI Cable, Adapter, Power code
Specification
Panel spec
Active area (mm) - 518.4(H) X 324(V)
Pixel Pitch (mm) - 0.270(H) X 0.270(V)
Response Time - 14 ms (typ)
Contrast ratio - 1000 : 1 (Typ)
Brightness(Min.) - -
Brightness(Typ.) - 300cd/m²
Viewing angle - 89 / 89 / 89 / 89
Operating Temp - 0~50'C
Storage Temp - 0~50'C
-
Standard type
Input Power - DC 12V
Touch - -
Option
Input Power - DC 24V, AC110~220V
Frame - -
Dimming - Auto, Knob, Manual
Temp. Control - Heating , Cooling
Catalogs
No catalogs are available for this product.
See all of EDVISION‘s catalogs
