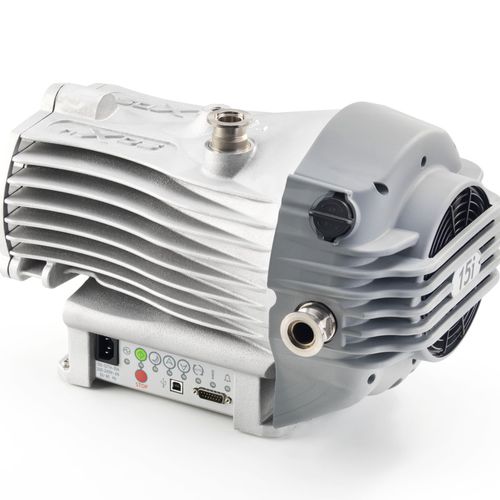

Scroll vacuum pump nXDS seriesdrysingle-stagefor the chemical industry
Add to favorites
Compare this product
Characteristics
- Technology
- scroll
- Lubrication
- dry
- Number of stages
- single-stage
- Applications
- for the chemical industry
- Other characteristics
- small, low-noise level, low energy consumption
- Ultimate vacuum
0.02 mbar, 0.03 mbar, 0.07 mbar
(0 psi, 0 psi, 0 psi)- Flow rate
110 us gal/h, 145 us gal/h, 220 us gal/h, 240 us gal/h
(416.4 l/h, 548.88 l/h, 832.79 l/h, 908.5 l/h)- Power
230 W, 280 W, 490 W
(0.31 hp, 0.38 hp, 0.67 hp)- Operating temperature
Min.: 5 °C
(41 °F)Max.: 40 °C
(104 °F)- Length
432 mm
(17 in)- Width
282 mm
(11.1 in)- Height
302 mm
(11.89 in)- Noise level
52 dB
- Weight
25.2 kg, 25.6 kg, 25.8 kg, 26.2 kg
(55.56 lb, 56.44 lb, 56.88 lb, 57.76 lb)
Description
dry scroll pumps
nXDS is a dry scroll pump offering pumping speeds of 6-20 m3h-1, combined with lower ultimate pressures, lower power consumption and lower noise levels than other pumps.
nXDS pumps are designed to be completely field serviceable.
Its intelligent control functions and up to five years service interval ensures low cost of ownership, making it the small dry pump of choice for today's most advanced technologies.
The onboard pump controller allows for:
Wide range voltage input with automatic selection.
Easy to use manual control buttons including a standby speed control button for efficient process tuning.
... and for more convenient operation a remote control interface.
