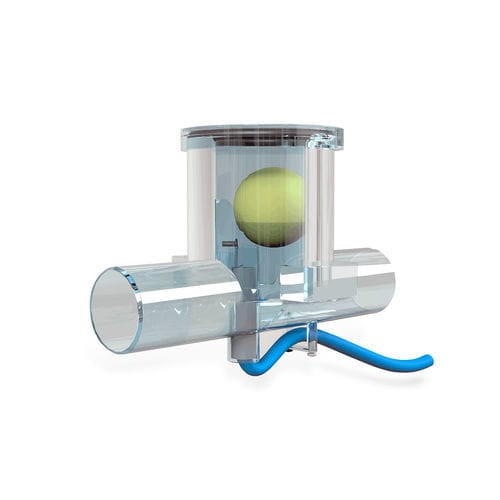

Syphon BIE series

A connector made from propylene, resistant to corrosion and decay, to be used to drain the condensate in the air conditioning systems at low pressure. The product in the standard package is designed for the maximum pressure of 600 Pa. FEATURES OF BALL SIPHON In the case of extremely low pressure, extension tube or knee can be shortened, or may be placed in inclined position (see size table). Built-in ball valve prevents the suction of air through the conclusion in the absence of condensate. It is easy to maintain and care. When connect socket with connector, socket should be moistened with water and soap. Each HVAC condensate drain system should be provided with a separate siphon. Pipes after the connector may be mounted on the market range tubes. MAIN ADVANTAGES OF BALL SIPHON FOR AHU, HVAC CONDENSATE DRAIN The size is very compact The valve closes the passage when not needed, avoiding bacteria, dirty air coming into the unit. It works in both conditions PA+ or even PA-Pressure higher than 600 PA. It is the perfect solution for compact unit. It is possible to add a heater at 230 V or 24 V in case the units are outside to avoid frost danger.
