Disc filtration system CDF series
for polymerswith pressure controller

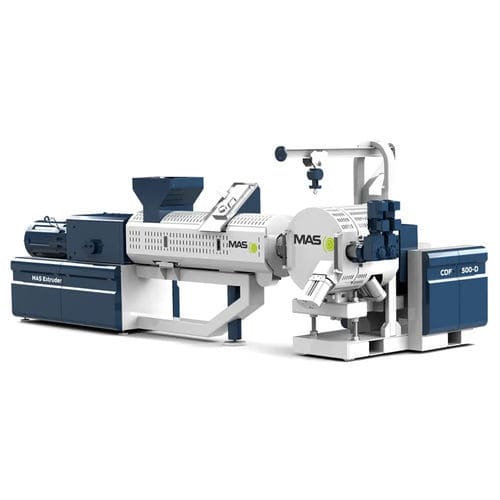

Disc filtration system - CDF series - efactor3 - for polymers / with pressure controller
Disc filtration system - CDF series - efactor3 - for polymers / with pressure controller
Disc filtration system - CDF series - efactor3 - for polymers / with pressure controller - image - 2
Disc filtration system - CDF series - efactor3 - for polymers / with pressure controller - image - 3
Disc filtration system - CDF series - efactor3 - for polymers / with pressure controller - image - 4
Disc filtration system - CDF series - efactor3 - for polymers / with pressure controller - image - 5
Disc filtration system - CDF series - efactor3 - for polymers / with pressure controller - image - 6
Add to favorites
Compare this product


Characteristics

Technology
disc
Designed for
for polymers
Other characteristics
with pressure controller
Flow

Max.: 6,000 l/h
(1,585.032 us gal/h)

Min.: 300 l/h
(79.252 us gal/h)

Filtration size

Max.: 750 µm

Min.: 90 µm

Pressure

180 bar
(2,610.68 psi)

Description

Wood, paper, aluminum foil, non-melting polymers etc. are very common impurities in the plastic recycling industry. Conventional filter systems using mesh screens are usually unable to cope with even small amounts of these impurities. The MAS CDF continuous melt filter separates contamination such as paper, wood, aluminum or rubber efficiently and can deal with large amounts of contaminants in the melt stream (up to 5%). A melt pressure-controlled scraper system removes the contamination from the surface of a rotating screen disc into a discharge screw system. The impurities are discharged continuously from the CDF, while the filtered melt continuous to flow downstream to the pelletizing system, profile or sheet die. The melt inside of the filter automatically controls the function of the scraper as well as the speed of the screen and discharge screw(s). Easy Maintenance – Filter Disc Replacement Filter discs are manufactured from steel plates that are heat treated for wear resistance. The replacement is very simple as the filter screen is easily accessible once the split housing has been opened. Consequently, the filter screen can be replaced in a few minutes using conventional tools. The screen can be cleaned with a vacuum oven (like the SC 700) and reused numerous times.
