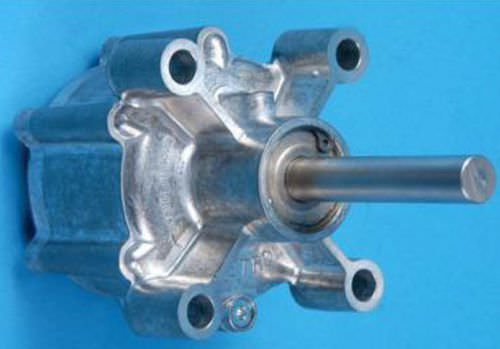

Rotary damper 0.18 - 75 in-lb | SCRD fluidfor pumpadjustable
Add to favorites
Compare this product
Characteristics
- Function
- rotary
- Technology
- fluid
- Applications
- for pump
- Other characteristics
- adjustable
Description
The S-CRD continuous rotation dashpot has
an adjustable rate. Specification of a given
silicone fluid filling provides maximum rates as
shown by the curves opposite.
Adjustment allows the rate to be varied down
to 1/10 of the maximum values, for any speed
of rotation.
The adjuster knob, although marked for
reference, is not normally calibrated.
The low stiction (0.025 lbf.ins / 0.003 Nm)
model as a ¼ shaft. For this specify:
S-CRD-LS- (Filling Viscosity)
