Ball valve BK1
manualfor controlblanketing

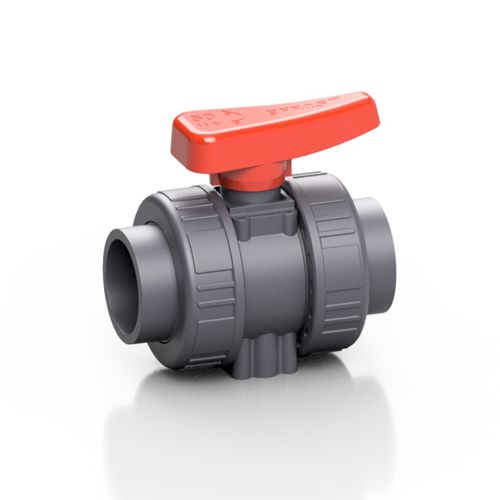

Ball valve - BK1 - Effast - manual / for control / blanketing
Ball valve - BK1 - Effast - manual / for control / blanketing
Ball valve - BK1 - Effast - manual / for control / blanketing - image - 2
Ball valve - BK1 - Effast - manual / for control / blanketing - image - 3
Ball valve - BK1 - Effast - manual / for control / blanketing - image - 4
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual
Function
for control, blanketing
Media
for water, for liquid food products and beverages, for chemical products
Body
with flange, threaded, weld, welded, PTFE, EPDM, PVC-U, HDPE
Applications
for food applications, for industrial applications, for the chemical industry, for food, for water, for actuators, for liquids, pipe, for hygienic applications, for marine applications, for swimming pool, for automation, for water purification systems, for heavy-duty applications
Number of channels
2-channel
Fluid specification
for aggressive media, for abrasive fluids
Other characteristics
ISO, DIN, high-performance, corrosion-resistant, actuated, chemical-resistant, with seal, high-performance, toroidal, for aggressive media
DN

Min.: 15 mm
(0.591 in)

Max.: 100 mm
(3.937 in)

Pressure

16 bar
(232.1 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 60 °C
(140 °F)

Flow rate

Min.: 190 l/min
(50.19 us gal/min)

Max.: 10,000 l/min
(2,641.72 us gal/min)

Description

EFFAST PVC-U valve BK1 is a true union ball valve ideal for heavy duty applications, chemical applications and water treatment. Technical features: Solvent welded sockets (ISO, BS, ASTM, JIS), threaded sockets (BSPP or NPT), HDPE sockets or flanged. Valve body designed to be actuated. Floating full bore ball locked in place on both sides. Fully round ball smoothed by special turning machines. Machined stem seat. PTFE ball seat. EDPM or FKM O-rings. Ergonomic handle with integrated tool for removing of union bushings and adjust the call seat carrier. Potable water approval. Marine Application approval. CE approval. The valves are manufactured with a PVC-U fit for conctact with potable water in accordance with regulation force in Italy, France, Germany, Holland, U.K. and Scandinavian countries.
