Ball valve SXmanualfor controlblanketing
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- for control, blanketing
- Media
- for water, for chemical products
- Body
- with flange, threaded, welded, PTFE, EPDM, PVC-U
- Applications
- for industrial applications, industrial, chemical, for water, for liquids, for hygienic applications, for marine applications, for heavy-duty applications
- Number of channels
- 2-channel
- Other characteristics
- ISO, chemical-resistant, with seal
- DN
Min.: 15 mm
(0.591 in)Max.: 100 mm
(3.937 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)- Flow rate
Min.: 190 l/min
(50.19 us gal/min)Max.: 10,000 l/min
(2,641.72 us gal/min)
Description

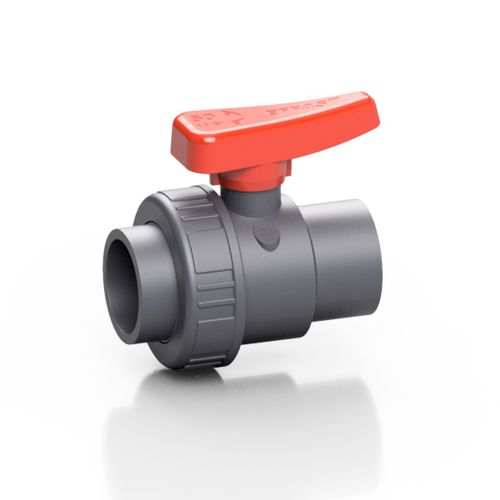

Single union SX ball valve is ideal for heavy duty applications, chemical applications and water treatment.
Technical features:
Solvent welded sockets (ISO, BS) or BSPP threaded sockets.
Floating full bore ball locked in place on both sides.
Fully round ball smoothed by special turning machines.
Machined stem seat.
PTFE ball seat.
EDPM or FKM O-rings.
Potable water approval.
Marine Application approval.
CE approval.
The valves are manufactured with a PVC-U fit for conctact with potable water in accordance with regulation force in Italy, France, Germany, Holland, U.K. and Scandinavian countries.
