Ball valve BV manualfor controlblanketing
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- for control, blanketing
- Media
- for water
- Body
- flange, threaded, welded, EPDM, PVC-U
- Applications
- for industrial applications, for marine applications, for swimming pool
- Number of channels
- 2-channel
- Other characteristics
- ISO
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 10,000 l/min
(2,641.72 us gal/min)Min.: 190 l/min
(50.19 us gal/min)
Description

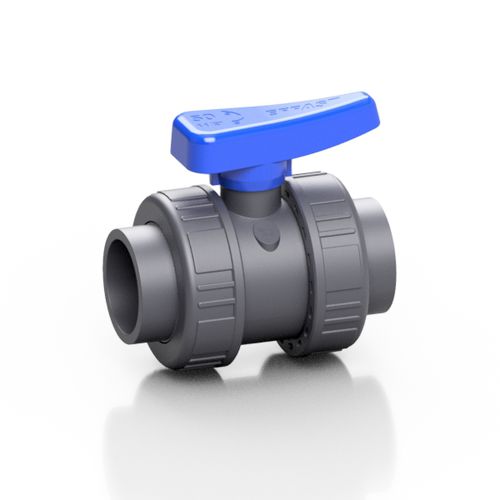

EFFAST BV valve is a PVC-U true union ball valve ideal for applications in the feld of agriculture, swimming pools, light water treatment and non-critical chemicals.
Technical features:
Solvent welded sockets (ISO, BS, ASTM, JIS), threaded sockets (BSPP NPT), HDPE sockets or flanged
Floating full bore ball locked in place on both sides.
Fully round ball smoothed by special turning machines.
Machined stem seat.
PE ball seat.
EPDM or FKM O-rings.
Ergonomic handle with integrated tool for removing of union bushings and adjust the call seat carrier.
Potable water approval.
Marine Application approval.
CE approval.
