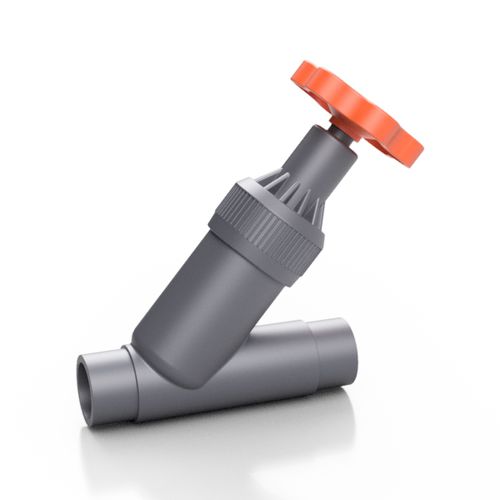

Shut-off valve VI pistonmanualwith handwheel
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- manual, with handwheel
- Function
- shut-off, regulating
- Media
- for water, for liquid food products and beverages, for chemical products
- Body
- angle seat, weld, PVC-U
- Applications
- for industrial applications, for marine applications, for swimming pool
- Other characteristics
- ISO
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 1,300 l/min
(343.42 us gal/min)Min.: 110 l/min
(29.06 us gal/min)
Description
The angle seat valve is a shutting-off and regulating valve particularly suitable for clean fluids.
Technical features:
Solvent welded metric sockets
Can be installed in any position
No metal parts in contact with the fluid
Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
Can be maintained with the valve body installed
