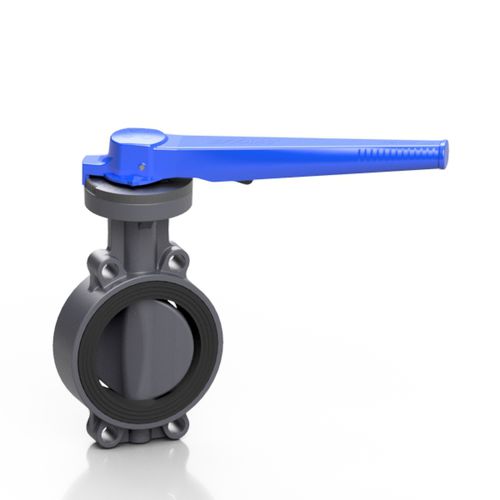

Butterfly valve PROFLOW® Hmanualleverflow control
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- manual, lever
- Function
- flow control, adjustment, blanketing, regulating
- Media
- for water
- Body
- flange, wafer, EPDM, PVC-U, zinc-plated steel
- Applications
- for water, for liquids, for marine applications, for swimming pool
- Other characteristics
- ISO, ANSI, DIN, high-performance, high-flow
- DN
Max.: 200 mm
(7.874 in)Min.: 65 mm
(2.559 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 2,371 m³/h
(83,731.07 ft³/h)Min.: 153 m³/h
(5,403.14 ft³/h)
Description
High performance butterfly valve for closing or flow regulating applications. Greater flow rates and reduced pressure drop across the valve, along with fine control, integral seal and ease of actuation means the PROFLOW H butterfly valve is ideal for high performance applications.
Technical features:
Patented High Flow offset disc with a unique design to allow for a greater flow rate and lower pressure drop in comparison to traditional discs.
The High Flow offset disc allows a linear response resulting in greater control and excellent flow regulation
PVC-U body is machined to guarantee a secure seal.
EPDM or EPDM NSF certified main gasket.
Zinc plated carbon steel stem
Lockable handle.
Regulating plate with 19 positions between 0° and 90°, for fne readjustment of the flow rate.
Suitable for installation between EN/ISO/DIN, ANSI and JIS flanges
Fit for contact with potable water
Compliant with the requirements of Annex III, Module A2 of the Pressure Equipment Directive 2014/68/EU.
