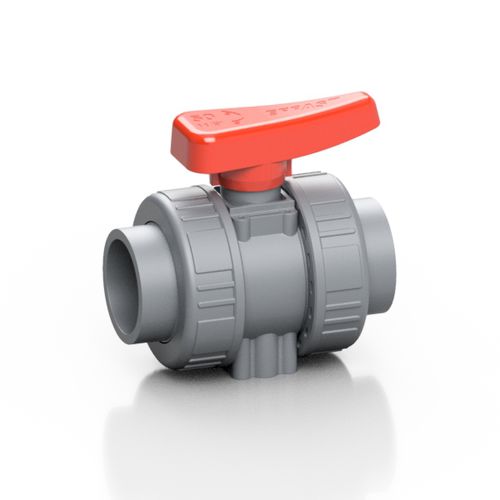

Ball valve BK1manualfor controlshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- for control, shut-off
- Media
- for hot water, for cooling water, for liquid food products and beverages
- Body
- weld, EPDM, PVC-U, ABS
- Applications
- for the food industry, for heating, for refrigeration, for HVAC installations, for refrigeration circuits
- Number of channels
- 2-channel
- Other characteristics
- ISO, high-temperature, for refrigerant fluids
- DN
Min.: 15 mm
(0.591 in)Max.: 100 mm
(3.937 in)- Pressure
15 bar
(217.6 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 60 °C
(140 °F)- Flow rate
Min.: 190 l/min
(50.19 us gal/min)Max.: 10,000 l/min
(2,641.72 us gal/min)
Description
With good chemicals resistance, lightness and easy to use, EFFAST ABS true union ball valve BK1 is ideal for low temperature fluid transportation.
Technical features:
Solvent welded sockets BS
Valve body designed to be actuated
Floating full bore ball locked in place on both sides.
Fully round ball smoothed by special turning machines.
Machined stem seat.
PTFE ball seat.
EPDM or FKM O-rings.
Ergonomic handle with integrated tool for removing of union bushings and adjust the call seat carrier.
Potable water approval.
Marine Application approval.
CE approval.
