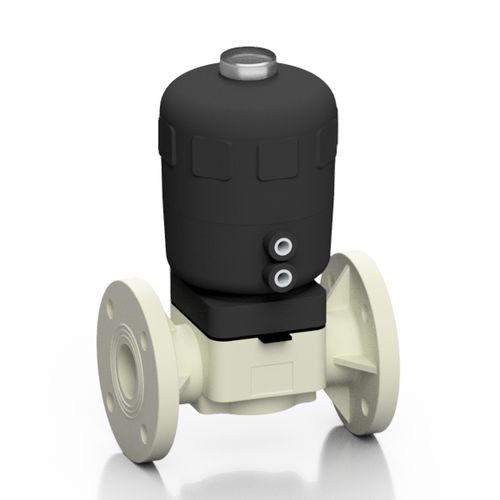

Diaphragm valve MPHpneumaticfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- pneumatic
- Function
- for control
- Media
- for water
- Body
- flange, chemical-resistant, PTFE, EPDM, PP
- Applications
- for industrial applications, for the chemical industry, for heating
- Number of channels
- 2-channel
- Fluid specification
- for abrasive fluids
- Other characteristics
- normally closed, standard, corrosion-resistant, for abrasive fluids, automatic, double-acting, single-acting, normally open, with actuator, with seal, drive, pneumatically-operated
- DN
Min.: 15 mm
(0.591 in)Max.: 50 mm
(1.969 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)- Flow rate
Min.: 6 m³/h
(211.89 ft³/h)Max.: 46 m³/h
(1,624.47 ft³/h)
Description
The diaphragm valve has a low maintenance membrane actuator which can be controlled by air or inert gases. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. All medium wetted parts and the actuator housing are made of highgrade plastic materials which can be selected to suit the application.
The chemical resistance of the valve is subject to the type of fluid, the temperature, the pressure, as well as the materials and seals of the valve.
Optimized pressure drop due to body design.
Stainless steel mounting inserts designed to support the valve. Same distance between the inserts for all DN.
Standard handwheel
EPDM, FPM, or PTFE diaphragm (EPDM backing).
