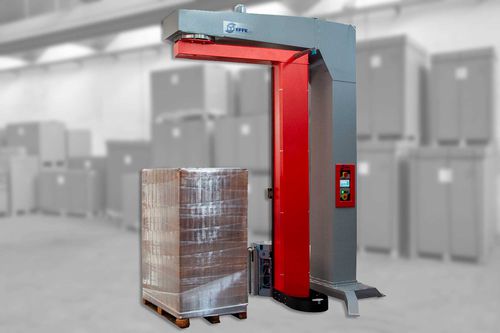

Rotary arm stretch wrapper Rotax S3350 Touchsemi-automaticfor the food and beverage industryfor logistics
Add to favorites
Compare this product
Characteristics
- Type
- rotary arm
- Operating mode
- semi-automatic
- Product applications
- pallet, for heavy loads, for the food and beverage industry, for logistics, for packaging, for bulky products, for heavy-duty applications
- Other characteristics
- stretch film, vertical, high-speed, with top cover sheet dispenser, for intensive use
- Maximum wrapping height
Max.: 3,000 mm
(118.11 in)Min.: 2,100 mm
(82.68 in)2,100 mm
(82.68 in)- Maximum pallet length
1,200 mm
(47.24 in)- Maximum pallet width
1,200 mm
(47.24 in)- Rotational speed
Max.: 15 rpm
(94 rad.min-1)Min.: 4 rpm
(25 rad.min-1)
Description
Semi-automatic wrapping machine with rotating arm Rotax S3350 Touch
Film carrier with MOTORISED PRE-STRETCH
Pallet height detected by photocell
Film carrier anti-fall system
Film carrier SPEED regulation
TOUCH-SCREEN control panel
Separate programming of top and bottom reinforcement wraps
Arm rotation regulated by variable frequency drive from 4 to 15 rpm
Catalogs
No catalogs are available for this product.
See all of EFFE3TI Packaging Technologies‘s catalogsOther EFFE3TI Packaging Technologies products
