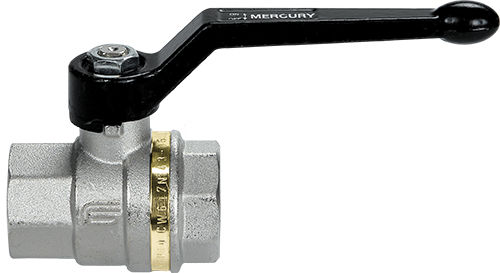

Ball valve MERCURY seriesleverdistributionfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- distribution
- Media
- for water
- Body
- threaded
- Applications
- for heating, industrial
- Other characteristics
- high-pressure, low-pressure
- DN
Min.: 8 mm
(0.315 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 40 bar
(580.2 psi)Max.: 63 bar
(913.7 psi)- Temperature
Min.: -15 °C
(5 °F)Max.: 120 °C
(248 °F)
Description
TECHNICAL FEATURES:
Temperature limits:
for fluids from –15°C to + 120°C
Pressure limits:
for fluids from 63 bar to 40 bar
SPECIFIC FEATURES:
Bore: full.
Stem: anti blow out.
Seats: high resistance virgin PTFE.
Upper seal: 4 seals
1 PTFE ring - high pressure
2 anti-friction self-adjusting cone shaped seals in PTFE - medium and low pressure
1 O-Ring - low pressure.
Application fields:
The MERCURY series is frequently employed in the installations of water distribution, industrial and civil heating, hydraulics, pneumatics and agriculture.
Threaded end connections:
• Standard female and male according to UNI ISO 228/1.
Operation devices:
Aluminium lever, aluminium T-handle, steel lever, square cap, sealing cap.
Available colours: black.
All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
