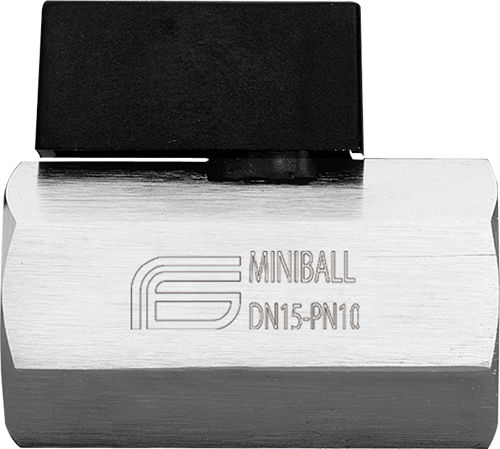

Ball valve MINIBALL series

leverfor waterthreaded

TECHNICAL FEATURES: Temperature limits: for fluids from –10°C to +90°C Pressure limits: for fluids of maximum 10 bar (20°C) SPECIFIC FEATURES: • The MINIBALL valve, with reduced bore, covers a wide range of applications, particularly where space is reduced. Application fields: MINIBALL series is mainly employed in combination with water exposed pipes, sanitation plants, civil heating, compressed air, tank discharge. Threaded end connections: • Standard female and male according to UNI ISO 228/1. • On request female and male according to UNI ISO 7/1 (UNI EN 10226). • On request compression connections. Diagram pressure/temperature see on page 41. Operation devices: Small lever, driving screw, small lever chromium plated. Available colours: black, chromium pl. polished. All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
