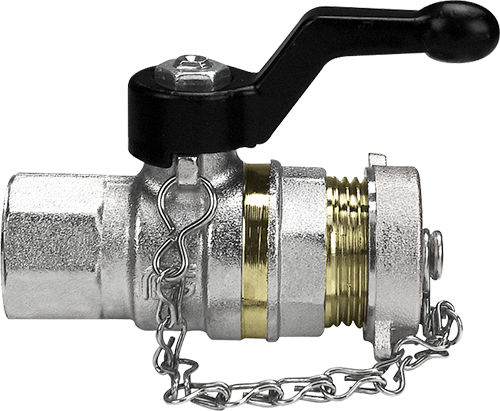

Ball valve TAPPY seriesleverdrainthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- drain
- Body
- threaded, brass
- Applications
- for boiler, spanner
- Other characteristics
- standard
- DN
15 mm
(0.591 in)- Pressure
40 bar
(580.2 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -15 °C
(5 °F)
Description
TECHNICAL FEATURES:
Temperature limits: for fluids from –15°C to + 90°C
Pressure limits: for fluids 40 bar
SPECIFIC FEATURES:
Bore: full.
Stem: anti blow out.
Seats: high resistance virgin PTFE.
Upper seal: 3 seals
1 PTFE ring - high pressure.
2 O-Ring - low pressure.
Application fields:
The TAPPY valve is designed particularly to be used as draining valve for boilers.
In the square cap version, the plug may be used as wrench for the handling of the cap.
Threaded end connections:
• standard female and male according to UNI ISO 228/1.
Operation devices:
Black aluminium lever, brass square cap.
All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
