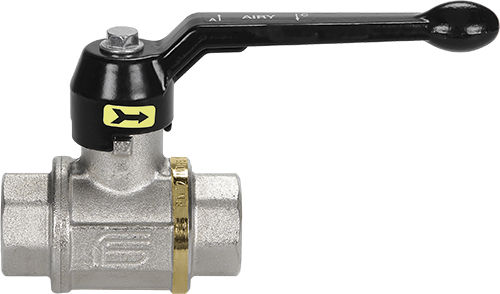

Ball valve AIRY seriesleverfor compressed airthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for compressed air
- Body
- threaded
- Other characteristics
- full-flow
- DN
Min.: 8 mm
(0.315 in)Max.: 50 mm
(1.969 in)- Pressure
12 bar
(174 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
TECHNICAL FEATURES:
Temperature limits: for air from 0°C to +60°C
Pressure limits: for air to a maximum of 12 bar
SPECIFIC FEATURES:
• The AIRY valve, with full bore, is a product derived from the TOTAL series and has been designed to releive the pressure of the downstream pipe section.
Bore: full.
Stem: security system with self-adjusting gland.
Seats: high resistance virgin PTFE .
Upper seal: DSS4® Dynamic Sealing System (international patent)
4 anti-friction self-adjusting cone-shaped
seals, in PTFE with dynamic seals.
Ideal system to ensure long life cycles.
Application fields:
The AIRY series is particularly used in compressed air installations.
Threaded end connections:
• Standard female according to UNI ISO 7/1 (UNI EN 10226).
Operation Devices:
Aluminium lever.
Available colours: black.
All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
