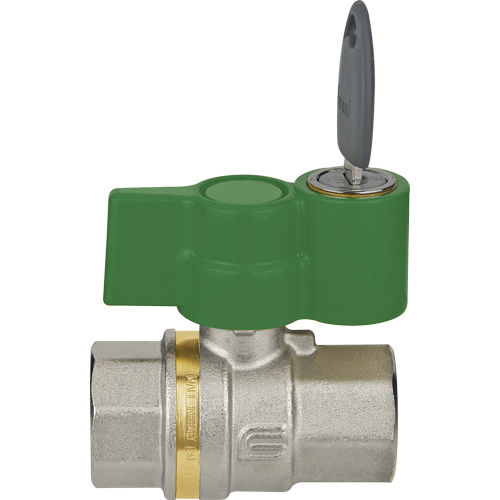

Ball valve GALAXY KEY series

manualdistributionfor water

TECHNICAL FEATURES: Temperature limits: for fluids from –15°C to +120°C Pressure limits: for fluids from 50 bar to 40 bar SPECIFIC FEATURES: Bore: full. Stem: anti blow out. Seats: high resistance virgin PTFE. Upper seal: 4 seals 1 PTFE ring - high pressure 2 anti-friction self-adjusting cone shaped seals, in PTFE - medium and low pressure 1 O-Ring - low pressure. Finishing: Internal surfaces are nickel free and comply with forthcoming European drinking water regulations. Ball: special self washing system that avoids stagnation. • The GALAXY KEY series has been designed to comply with forthcoming European drinking water regulations which requires all internal surfaces to be nickel-free and all components in contact with the water to be compliant to regulations. Application fields: The GALAXY KEY is mainly used in drinkable water distribution systems, industrial and civil heating, oil, pneumatics, agriculture. Its system with locking key, allows to lock the valve only in closed position. Threaded end connections: • Standard female and male according to UNI ISO 7/1 (UNI EN 10226). Operation devices: Aluminium T-handle with locking key. All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
