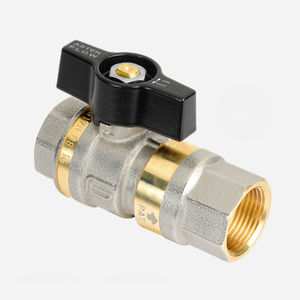

Ball valve GLADIUS series

manualthreadedalloy

TECHNICAL FEATURES: Temperature limits: for fluids from –15°C to + 110°C Pressure limits: PN25 SPECIFIC FEATURES: • The GLADIUS strainer is manufactured from DZR (Dezincification Resistant Copper Alloy), a particular antidezincification copper with high corrosion resistance to aggressive water,chilled water and seawater applications. Application fields: The GLADIUS strainer is particularly suitable for those installations where high aggressive water causes dezincification in standard brass alloys and weakens the molecular structure of the material. As a result it is suitable for sea water and chilled water installations and can also be installed on boats. Filter: Stainless Steel Mesh 500 µm. Cleaning: • For art. 2341, unscrew the threaded plug, remove the Mesh and clean it. • For art. 2342, open the purge valve to drain or remove the threaded plug to clean the filter. Threaded end connections: • Standard female according to UNI ISO 7/1 (UNI EN 10226). All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
