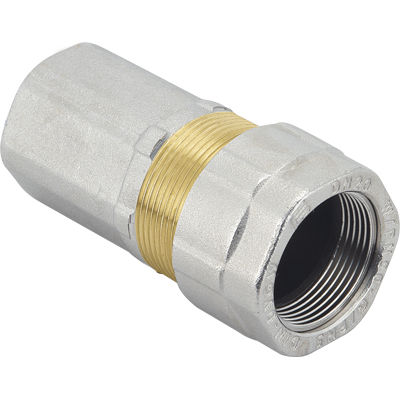

Hydraulic fitting KRONOS series

for gasthreadedbrass

TECHNICAL FEATURES: Temperature limits: for fluids from –20°C to +90°C for gas from –20°C to +60°C *Pressure limits for fluids: (20°): 3/8”- 1” =PN50 – 1”1/4 – 1”1/2 =PN32 - 2” =PN25 for gas MOP5 SPECIFIC FEATURES: • The KRONOS fitting for iron pipes allows to connect and/or repair iron pipes. • The cone-shaped (NBR) sealing system compensates for possible under sized diameter of the pipe. • The antithreading brass ring sticks perfectly to the pipe thanks to its auto-locking serration. Application fields: The KRONOS fittings for iron pipe are used for repairs of civil water and gas plants renovation, industrial and civil heating, hydraulic plants. Threaded end connections: • Standard female and male according to UNI ISO 7/1 (UNI EN 10226).
