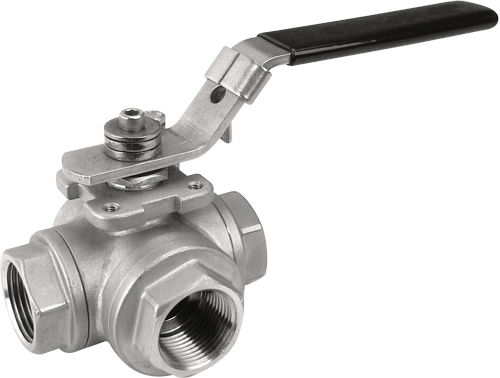

Ball valve GEMINI series
levermixingfor water

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever
Function
mixing
Media
for water
Other characteristics
standard, corrosion-resistant
DN

54 mm
(2.126 in)

Pressure

64 bar
(928.2 psi)

Temperature

Max.: 160 °C
(320 °F)

Min.: -20 °C
(-4 °F)

Description

MAIN STANDARD FEATURES: • CONSTRUCTION: CF8M (AISI 316). • CONNECTIONS: F/F/F Rp UNI ISO 7/1 (UNI EN 10226) DIN 2999 parallel. • PRESSURE: PN64. • TEMPERATURE LIMITS: -20°C / +160°C. • SEATS: 4 wrapping gaskets. • STEM SEAL: double stem-packing with labyrinth effect. • STEM: anti-explosion. • OPERATOR: lever. Available colours: black. • MOUNTING PLATE: ISO 5211. • Lever rotation must be 90° clockwise. GENERAL APPLICATIONS: ON-OFF valve for: deviation or mixing of fluids in general plants. For special application please check the suitability of the valve for the process and the required corrosion resistancy using the relevant table. SPECIAL EXECUTIONS: • Degreased valves for oxygen service (max WP 20 bar). • For further special requests please consult our technical/commercial service.
