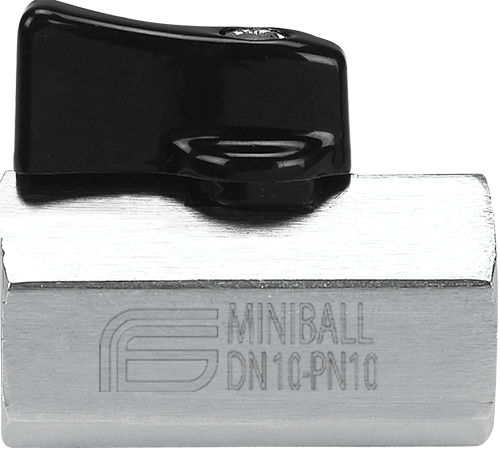

Ball valve MINIBALL AL seriesleverfor waterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for water
- Body
- threaded, miniature
- Applications
- heating, for pipes
- Associated function
- discharge
- DN
Max.: 0.5 mm
(0.02 in)Min.: 0.125 mm
(0.005 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -10 °C
(14 °F)
Description
TECHNICAL FEATURES:
Temperature limits:
for fluids from –10°C to +90°C
Pressure limits:
for fluids of maximum 10 bar (20°C)
SPECIFIC FEATURES:
• Aluminium lever.
• The MINIBALL valve, with reduced bore, covers a wide range of applications, particularly where space is reduced.
Application fields:
The MINIBALL series is mainly employed in combination with water exposed pipes, sanitation plants, civil heating, compressed air, tank discharge.
Threaded end connections:
• Standard female and male according to UNI ISO 228/1.
• On request female and male according to UNI ISO 7/1 (UNI EN 10226).
Operation devices:
Small lever, small lever chromium plated.
Available colours: black, chromium pl. polished.
All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
Catalogs
No catalogs are available for this product.
See all of EFFEBI‘s catalogs
