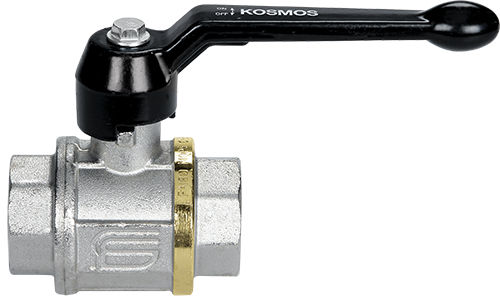

Ball valve KOSMOS series
manualdistributionfor water

Ball valve - KOSMOS series - EFFEBI - manual / distribution / for water
Ball valve - KOSMOS series - EFFEBI - manual / distribution / for water
Ball valve - KOSMOS series - EFFEBI - manual / distribution / for water - image - 2
Ball valve - KOSMOS series - EFFEBI - manual / distribution / for water - image - 3
Ball valve - KOSMOS series - EFFEBI - manual / distribution / for water - image - 4
Ball valve - KOSMOS series - EFFEBI - manual / distribution / for water - image - 5
Ball valve - KOSMOS series - EFFEBI - manual / distribution / for water - image - 6
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual
Function
distribution
Media
for water
Body
threaded, with extended stem, brass
Applications
for heating, industrial
Other characteristics
high-pressure, low-pressure
DN

Min.: 6 mm
(0.236 in)

Max.: 80 mm
(3.15 in)

Pressure

Min.: 40 bar
(580.2 psi)

Max.: 80 bar
(1,160.3 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 130 °C
(266 °F)

Description

TECHNICAL FEATURES: Temperature limits: for fluids from –20°C to + 130°C Pressure limits: for fluids from 80 bar to 40 bar SPECIFIC FEATURES: Bore: full. Stem: security system with gland. Seats: high resistance virgin PTFE . Upper seal: DSS4® Dynamic Sealing System (international patent) 4 anti-friction self-adjusting cone-shaped seals, in PTFE and dynamic seals. Ideal system to ensure long life cycles, high and low pressure, and vacuum. Application fields: The KOSMOS series is recommended in the installations of water distribution, industrial and civil heating, water plants at medium and high pressure, hydraulics and pneumatics, oil and petrochemical fields, non aggressive fluids. Threaded end connections: • Standard female and male according to UNI ISO 228/1. Operation devices: Aluminium lever, aluminium T-handle. Available colours: black. All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
