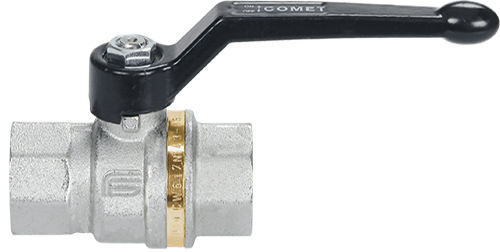

Ball valve COMET seriesleverdistributionfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- distribution
- Media
- for water
- Body
- threaded
- Applications
- industrial, for heating
- Other characteristics
- high-pressure, low-pressure
- DN
Max.: 100 mm
(3.937 in)Min.: 8 mm
(0.315 in)- Pressure
40 bar
(580.2 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -15 °C
(5 °F)
Description
TECHNICAL FEATURES:
Temperature limits:
for fluids from –15°C to +90°C
Pressure limits:
for fluids of 40 bar
SPECIFIC FEATURES:
Bore: full.
Stem: anti blow out.
Seats: high resistance virgin PTFE .
Upper seal: 3 seals:
1 PTFE ring - high pressure.
2 O-Ring - low pressure.
Application fields:
The COMET series is used where faultless sealing is required in the industrial and civil heating installations, water plants, hydraulics, pneumatics and agriculture.
Threaded end connections:
• Standard female and male according to UNI ISO 7/1 (UNI EN 10226).
Operation devices:
Aluminium lever, aluminium T-handle, steel lever, square cap, sealing cap.
Available colours: black, red.
All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
Catalogs
General catalogue
419 Pages
