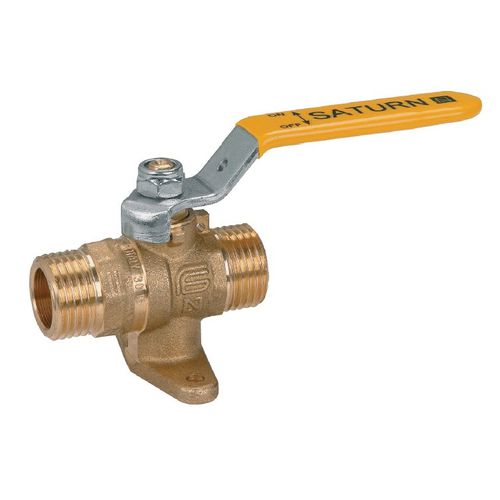

Ball valve SATURN series

manualregulatingfor gas

TECHNICAL FEATURES: Temperature limits: for gas from –20°C to +60°C Pressure limits: for gas MOP5 SPECIFIC FEATURES: Bore: reduced. Stem: anti blow out. Seats: high resistance virgin PTFE. Upper seal: 4 seals 1 PTFE ring- high pressure 2 anti-friction self-adjusting cone shaped seals, in PTFE - medium and low pressure 1 O-ring - law pressure. • The SATURN valve has been designed to comply with regulation EN331 covering gas ball valves. Its construction guarantees a high working reliability at low and very low pressures which are typically found in gas installations. Application fields: The SATURN series is particularly recommended in gas installations (families 1°, 2°, 3° EN 437). Threaded end connections: • Standard male-male (female for nut) according to ISO 228/1. Operation devices: Yellow steel lever, yellow aluminium lever, lockable lever kit. All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
