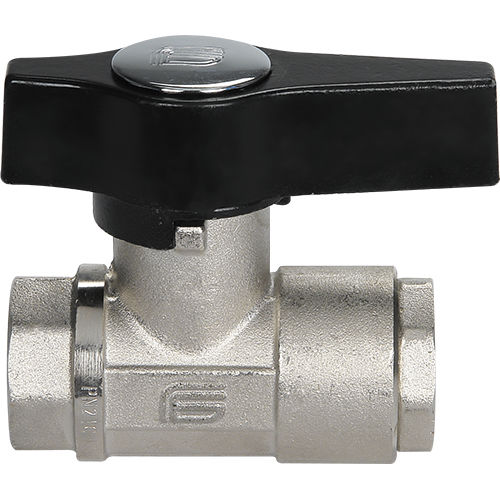

Ball valve HIPRESS seriesmanualfor waterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Media
- for water
- Body
- threaded, brass
- Applications
- industrial
- Other characteristics
- standard
- DN
10 mm, 15 mm, 20 mm, 25 mm
(0.394 in, 0.591 in, 0.787 in, 0.984 in)- Pressure
210 bar
(3,045.8 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)
Description
TECHNICAL FEATURES:
Temperature limits: for fluids from –10°C to +80°C
Pressure limits: for fluids from 210 bar
SPECIFIC FEATURES:
• The HIPRESS valve, with reduced bore, has been designed for high pressures.
Bore: reduced.
Stem: anti blow out.
Seats: high resistance virgin PTFE .
Upper seal: 3 seals
2 anti-friction self-adjusting cone shaped
seals, in PTFE - high and medium pressure.
1 O-Ring - low and medium pressure.
Application fields:
The HIPRESS series is recommended for hydraulic installations, pneumatics and industrial plants in general, high pressure.
Threaded end connections:
• Standard female according to UNI ISO 7/1 (UNI EN 10226).
Operation devices:
Aluminium T-handle.
Available colours: black.
All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
