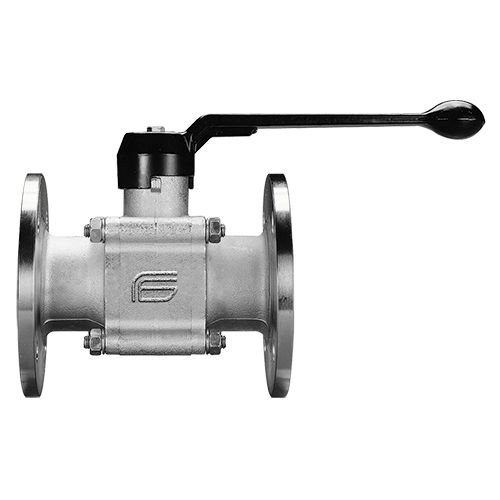

Ball valve OLYMPIC series

leverdistributionfor water

TECHNICAL FEATURES: Temperature limits: for fluids from –15°C to +120°C Pressure limits: for fluids at 16 bar for all the dimensions SPECIFIC FEATURES: Bore: full. Stem: security system with self-adjusting gland. Seats: high resistance virgin PTFE. Upper seal: DSS4® Dynamic Sealing System (international patent) 4 anti-friction self-adjusting cone-shaped seals, in PTFE, with dynamic seals. Ideal system to ensure long life cycles, high and low pressure. Application fields: The OLYMPIC series is recommended when frequent interchangeability of components, e.g. for maintenance reasons may be required. It is usually used for water distribution, industrial and civil heating, water plants at medium pressure, hydraulics and pneumatics, oil and petrochemical fields, non aggressive fluids. Threaded end connections: • Standard flanges UNI EN 1092-3 (sealing raised face PN 16) overall length according to ISO 5752 (table 6 medium series PN 16). Operation devices: Aluminium lever. Available colours: black. All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
