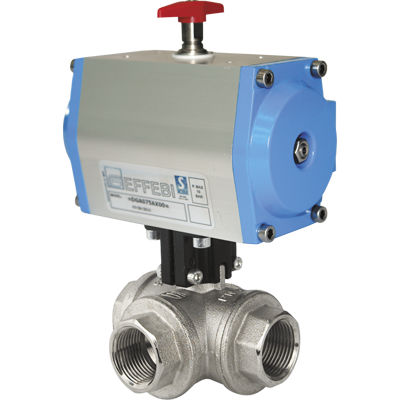

Ball valve TRIFLUX seriespneumatically-operatedmanualfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- pneumatically-operated, manual
- Media
- for compressed air
- Body
- threaded
- Number of channels
- 3-way
- Other characteristics
- single-acting, double-acting
- DN
Min.: 0.5 in
Max.: 2 in
- Pressure
Min.: 16 bar
(232.1 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description
ACTUATOR FEATURES:
• ROTATION ANGLE: 90°.
• TEMPERATURE LIMITS: -20°C / +90°C.
• SUPPLY MAXIMUM PRESSURE: 10 bar (8 bar for DNA045).
• NOMINAL PRESSURE: 5.62 bar.
• SUPPLY FLUID: filtered compressed air.
• LUBRICATION: NBR compatible oil to be used.
For further information on the actuator technical features refer to the specific data sheet for actuator at the end of this catalogue (page 348/349).
STANDARD VALVE FEATURES:
• TEMPERATURE LIMITS: for fluids –15°C / + 100°C (PTFE).
• MAXIMUM WORKING PRESSURE: for fluids 40 bar – 16 bar.
• THREADED END CONNECTIONS: F/F/F Rp UNI ISO 7/1 (UNI EN 10226).
For general applications and special executions, see the manual valve.
