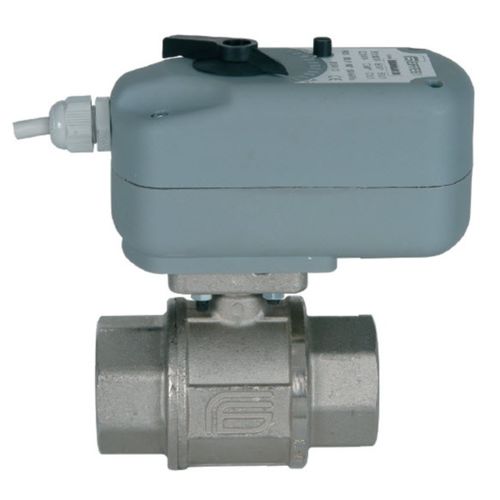

Ball valve LYBRA series

manualfor oilthreaded

EM080-EMM80 ACTUATOR FEATURES: • ROTATION ANGLE: 90°. • TEMPERATURE LIMITS: -5°C / +70°C. • SUPPLY VOLTAGE: 024 Vac and 230Vac. • PROTECTION DEGREE: IP54. • RELEASE WITH MANUAL OPERATION OPTION: 1/2" - 1"1/4. • STATIC TORQUE SUPPLIED: 4.5 N/m - 14 N/m. • ROTATION TIME: 15 s. - 60 s. STANDARD VALVE FEATURES: • TEMPERATURE LIMITS: -20°C / +90°C (PTFE). • MAX WORKING PRESSURE: PN40. • THREADED ENDS: F/F Rp UNI UNI ISO 7/1 (UNI EN 10226) DIN2999 parallel. • MOUNTING PLATE: ISO 5211. For general features and special versions refer to data on the manual valve. For further information on the actuator technical features refer to the specific data sheet for actuator at the end of this catalogue. EM • EL-EH • ER-EQ On request: • EQ actuator is available for valves of all dimensions in 24 Vac – 230 Vac – 400 V3N tension. • EL-EH actuator is available for valves of all dimensions in 12-24 V ou 85-240 V.
