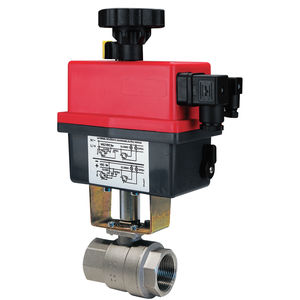

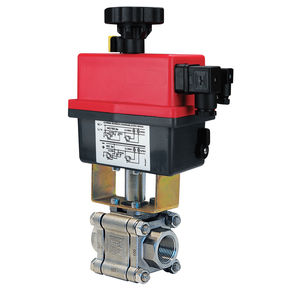

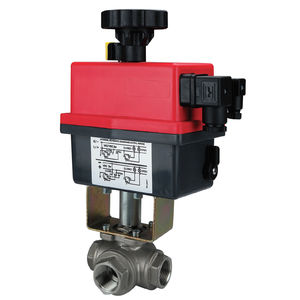

Ball valve TOTAL serieselectrically-operatedfor gasthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-operated
- Media
- for gas
- Body
- threaded, IP65
- Number of channels
- 2-way
- Other characteristics
- with actuator
- DN
Min.: 0.375 in
Max.: 3 in
- Pressure
Min.: 20 bar
(290.1 psi)Max.: 64 bar
(928.2 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 130 °C
(266 °F)
Description
EL-EH ACTUATOR FEATURES:
• ROTATION ANGLE: 90°.
• TEMPERATURE LIMITS: -20°C / +70°C.
• SUPPLY VOLTAGE: 012 - 240V.
• PROTECTION DEGREE: IP65.
• STATIC TORQUE SUPPLIED: 20 N/m - 350 N/m.
• ROTATION TIME: 11 s. - 60 s.
STANDARD VALVE FEATURES:
• TEMPERATURE LIMITS:
for fluids –20°C + 130°C (PTFE)
for gas –20°C + 60°C (PTFE).
• MAX WORKING PRESSURE:
from 64 bar to 20 bar for fluids
MOP5 for gas.
• STEM: double conical sealing by 4 gaskets.
For general features and special versions refer to data on the manual valve.
For further information on the actuator technical features refer to the specific data sheet for actuator at the end of this catalogue.
EL-EH • ER-EQ
On request:
• EQ actuator is available for valves of all dimensions in 24 Vac – 230 Vac – 400 V3N ensions tension.
