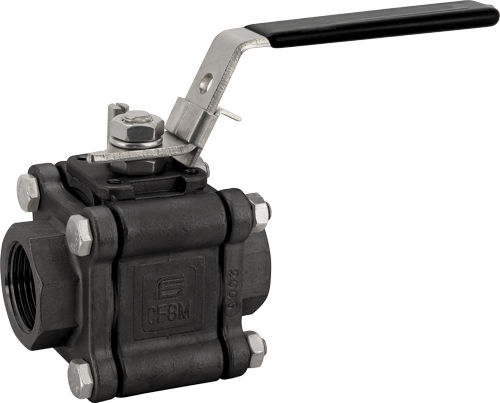

Ball valve ARGOS series

manualfor water3-piece

MAIN STANDARD FEATURES: • CONSTRUCTION: A216 WCB (ASTM A105) • CONNECTION: F/F Rp UNI ISO 7/1 (UNI EN 10226) DIN2999 parallel GAS SW ANSI B16.11 socket weld BW ANSI B16.25 butt weld sch.40 F/F NPT ANSI B1.20.1. • PRESSURES: PN140 1/4” - 1” PN100 1”1/4 - 2”. • TEMPERATURE LIMITS: -10°C / +150°C (PTFE). • STEM: Anti blow out with anti-static device. • OPERATOR: lever with locking device. • MOUNTING PLATE: ISO 5211 for actuator. GENERAL APPLICATIONS: ON-OFF valve for: chemical, water and pneumatic installations and for steam up to 10 bars. The valves are designed and manufactured in order to allow inspections and maintenance in line by removing the valve body only. For special application please check the suitability of the valve for the process and the required corrosion resistancy using the relevant table. SPECIAL EXECUTIONS: • SEALS: PTFE + CARBOGRAPHITE up to +180°C (optimum from 60°C to 180°C) • Oval Handwheel up to 1”. • For further special requests please consult our technical/commercial service.
