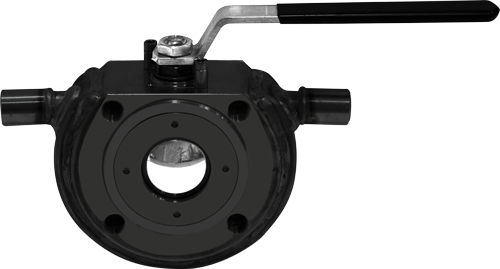

Ball valve MOON CR seriesmanualfor hot waterfor oil
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Media
- for hot water, for oil
- Body
- flange
- Applications
- heating
- Other characteristics
- corrosion-resistant, fire-safe
- DN
Min.: 15 mm
(0.591 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 40 bar
(580.2 psi)
Description
MAIN STANDARD FEATURES:
• CONSTRUCTION: AISI316 - AISI304 - A105.
• Heating jacket: A105/A304.
• JACKET CONNECTIONS: FF gas or FLANGE PN16.
• For construction features of valves please refer to the relevant technical tables
of the MOON VALVE.
GENERAL APPLICATIONS:
Applications: on-off valve where a steady temperature of the fluid is needed inside the valve by circulation of hot water, oil or other fluids inside the jacket mounted outside the valve body.
For special application please check the suitability of the valve for the process and the required corrosion resistancy using the relevant table.
SPECIAL EXECUTIONS:
• Ball drilling.
• HEATING JACKET: AISI304.
• JACKET CONNECTIONS: FF NPT ANSIB1.20.1
(taper threads).
• For further special requests please consult our technical/commercial service.
