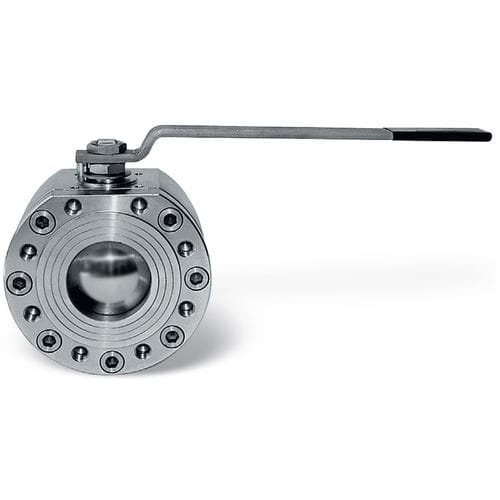

Ball valve SELENE series

manualdistributionfor water

MAIN STANDARD FEATURES: • CONSTRUCTION: AISI 316L (body from bar) ** AISI 316 (body from casting) AISI 304. • STANDARDS: BS EN ISO 17292:2004. • CERTIFICATION: FIRE SAFE according to BS 6755 - API 6 FA - API 607 TÜV for TA Luft (only PTFE). • PRESSURES: PN16 or PN16/40 body from bar PN16 body from casting. • TEMPERATURE LIMITS: -20°C /180°C (PTFE). • CONNECTIONS with flanges: UNI-EN 1092 and DIN2501 BL.1. • FLANGE DRILLING: metric . • STEM: Anti blow out with anti-static device. • SEAL: triple patented stem-packing with labyrinth effect and automatic adjustment by Belleville washers. • UPPER CONNECTION: ISO 5211. • OPERATOR: lever. Available colours: black, yellow. • FLANGE: Bolted flange for ball retaining. • CONTAINED BALL. GENERAL APPLICATIONS: ON-OFF valve for: chemical products, food plants, distribution lines for gas, air, water. Suitable for average vacuum (see page 420), steam up to +200°C with PTFE+CARBOGRAPHITE. SPECIAL EXECUTIONS: • PTFE+15% GLASS FIBRE: + 190°C. • PTFE+CARBOGRAPHITE: + 200°C (optimum from 60°C to 200°C). • Peek for high temperatures up to +260°C (optimum from 100°C to 260°C). • Ball drilling. • PTFE seals with metal core (on request). • Integral seal in PTFE up to DN100. • DN125-150– 200 PN40. • Reduction gears with manual operator. • Stem extensions 50mm and 100mm up to DN100. • Valve ANSI150. • Body - flange – stem – ball made of AISI316L. • Degreased valve for oxygen service (max 20 Bar). • For further special requests please consult our technical/commercial service.
