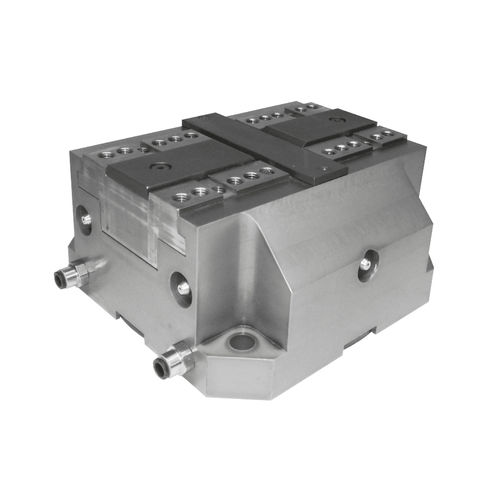

Universal vise UVH series
hydrauliclow-profileself-centering

Universal vise - UVH series - Effecto Group S.p.A. - hydraulic / low-profile / self-centering
Universal vise - UVH series - Effecto Group S.p.A. - hydraulic / low-profile / self-centering
Universal vise - UVH series - Effecto Group S.p.A. - hydraulic / low-profile / self-centering - image - 2
Universal vise - UVH series - Effecto Group S.p.A. - hydraulic / low-profile / self-centering - image - 3
Universal vise - UVH series - Effecto Group S.p.A. - hydraulic / low-profile / self-centering - image - 4
Add to favorites
Compare this product


Characteristics

Applications
universal
Operation
hydraulic
Configuration
low-profile
Other characteristics
self-centering, machining
Max. clamping force

Max.: 39,530 N

Min.: 17,800 N

Stroke

2 mm, 3 mm, 6 mm, 8 mm
(0 in, 0 in, 0 in, 0 in)

Description

UVH is a hydraulically actuated 2-jaw self-centering vise in a compact design with a high clamping force. The vises are available with standard stroke, or long stroke or with one fixed jaw. ADVANTAGES • Precise wedge-hook mechanism allows machining accuracy • High force drive for secure clamping • Extended clamping range with long jaw guidance • Optimum jaw guides (hardened, sturdy, low-backlash) allow high clamping forces and a long service life • Low profile: Maximum use of the machine room and excellent rigidity of the system • Lean outer contour for optimal accessibility of the machine spindle to the workpiece • Cubic design: ideal for 6-sided machining • Optimized lubrication system for consistently high clamping forces • Base jaws with tongue and groove or fine serration as standard for high flexibility of top jaws • All functional parts are hardened and ground to ensure a long service life Ambient temperature 5-60°C Sound emissions (sound pressure) ≤ 70 db (A) in each direction
