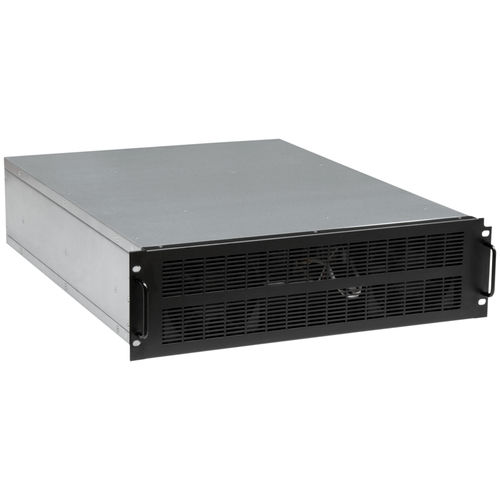

Double-conversion UPS TRITON M1 Series

ACmodularwith sinusoidal output

With the TRITON EFFEKTA® offers a modern, modular design, online double-conversion UPS with 3-phase input & output. The system is operated with a power module from 10 to a maximum of 40kVA. Further up to 4 of these systems can be operated in parallel. The power modules allow easy maintenance and replacement and therefore low service costs (very low MTTR value). Properties UPS classification VFI-SS-111 (IEC 62040-3) Online double conversion with sinusoidal output THDI ≤3% Easy maintenance through modular design Large input voltage window High input power factor up to 1 (0.99) High efficiency (up to 95%) switchable to ECO mode (> 98%, line-interactive) High output power factor (0.9) Monitoring and control via LCD panel EPO (remote shutdown) Temperature-controlled fan 3-step gentle battery charging method Extensive communication interfaces (RS232, RS485, 1 x expansion slot(s) for SNMP- or relay card) Management software for all common OS 12 months warranty
