UPS monitoring device CS 141

Modbusinternet

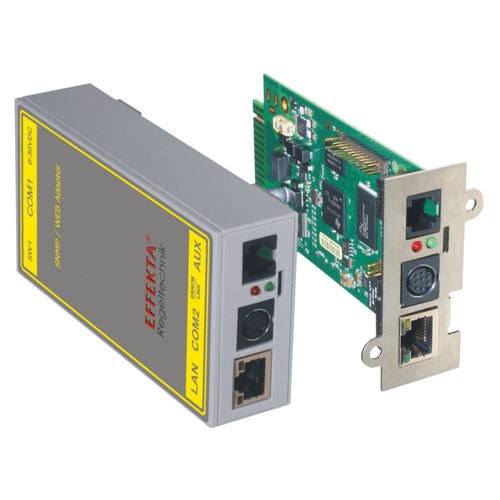

The CS141 includes a wide range of surveillance applications in the field of energy and building-management and is used for communication between safety-related devices from multiple types of network-based users. CS141 adapters are available as stand-alone version and as a slot card. Both constructions are to have a fully equipped standard version and as a budget version is excluded functionality. For some UPS models you particularly compact and space saving of the CS 141 Mini available. Features: 32-bit RISC processor, 128 MB RAM, 512 MB Flash Memory 10/100 Mbps network connection 1-2 serial RS232 interfaces (version dependent) AUX port for connecting the expansion boards "CON_R_AUX4" for 4 potential-free contacts as input or output Modbus / IP support User-friendly Web interface Interface for external Sensors SNMP and UPS MIB RFC1628 compliant Updates available via Internet
