Double-conversion UPS TRIAS RM 31
parallelsingle-phasethree-phase

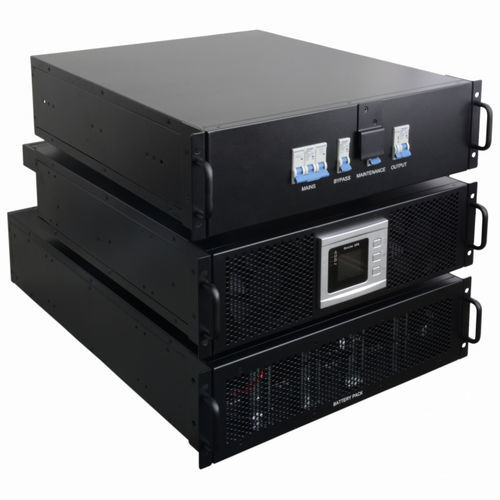

Double-conversion UPS - TRIAS RM 31 - Effekta Regeltechnik - parallel / single-phase / three-phase
Double-conversion UPS - TRIAS RM 31 - Effekta Regeltechnik - parallel / single-phase / three-phase
Add to favorites
Compare this product


Characteristics

Type
double-conversion, parallel
Electrical characteristics
single-phase, three-phase, AC
Type of energy storage
lead
Other characteristics
with LCD display, Eco mode, redundant, sine wave, with RS-232 interface, with RS-485 interface
Applications
industrial, network, for telecom applications, server
Configuration
19" rack
Certifications
IEC, CE
Output power kVA

6 kVA, 10 kVA
(8.157727 hp, 13.596212 hp)

Input voltage

Max.: 415 V

Min.: 220 V

Output voltage

220 V, 230 V, 240 V

Power

6,000 W, 10,000 W

Description

The new TRIAS RM UPS system from EFFEKTA® is one of the few 19“ systems with 3-phase input and 1-phase output in 19“ design. With 6 kVA or 10 kVA output power at power factor 1 allows a setup of a highly available UPS system in 19“ cabinets. By parallel connection up to 4 systems can be combined to achieve n+x redundancy. The TRIAS RM is thus an ideal solution for servers, banks, industrial/IT equipment, communication systems and other network devices that require comprehensive protection. Characteristics Service-friendly battery exchange UPS software for all common operating systems Integrated remote emergency stop contact (REPO) Special feature Unbeatable price advantage in this power class Excellent power factor of 1.0 Mains feedback THDi <3% Options for extended communication and highest availability: Additional battery cabinets to increase the bridging time to several hours Special designs available for industrial applications (connections / special housings, etc.)
