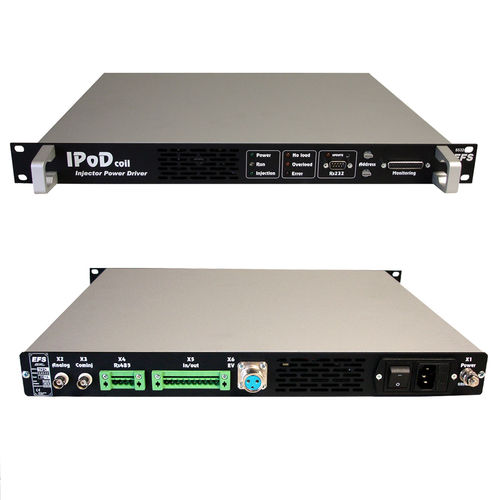

Pulse signal converter IPoD coil - EFS 8532

digitalfrequency-to-currentstart/stop pulse

The IpoD Coil is a power driving module for injectors using magneto-electric technology. It features different driving modes and its numerous advanced functions mean that it can adapt to most commercially available injectors. The driving modes are derived from a basic cycle featuring all the necessary phases: - preload phase, - boost phase, - pull-in phase, - holding phase, - discharge phase, - demagnetisation phase. Device advantages: - Double driving power supply: one source programmable from 6 to 50V, one source programmable from 25 to 150V - Independent unit with internal pulse generator - Injection frequency of up to 5 injections per rev at 3000 rev/minute - Graphic interface to control all the injection parameters - Fully protected. - Can be driven by an external module (ICU)
